Din 6912 Weights

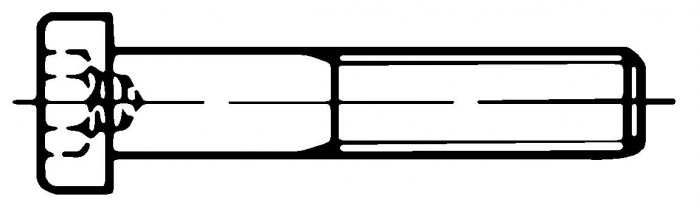

Weight Chart for DIN 6912 Low Head Socket Cap Screws.

Diameter	M4	M5	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36
Length	M4	M5	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36
10	1.3	2.2	3.6
12	1.5	2.5	3.9	7.7
16	1.9	3.1	4.5	8.8	15.5	22.3
20	2.3	3.7	5.2	10.2	17.9	25.5	37.9	52.5
25	2.7	4.4	6.2	12.5	20.2	29.5	42.5	56.5	77.0
30	3.2	5.1	7.3	14.0	22.0	32.5	48.0	63.0	84.6	108
35	3.4	5.8	8.3	15.7	25.5	36.5	53.0	69.7	93.3	118
40	4.2	6.6	9.5	17.5	28.5	40	58.0	78.7	102	128	185
50	5.2	7.3	11.5	21.5	34.8	48	69.5	91.5	119	150	215
60		9.0	13.6	25.3	40.3	57	82.0	107	138	172	245	263
70			15.7	29.1	46.0	65	92.5	122	157	196	275	298	445	498
80				32.8	52.5	72	104	140	178	222	305	333	490	552	793
90					57.8	80	116	154	196	245	335	369	535	607	860	1000
100						88	127	169	215	269	365	407	580	662	927	1080
110							139	183	235	292	395	439	625	717	994	1160
120							151	198	255	316	425	474	670	772	1060	1240
130								212	275	342	455	510	715	827	1130	1320
140								226	295	368	485	545	760	880	1190	1400
150									315	394	515	580	805	940	1250	1470
160										422	545	616	850	990	1320	1550
170										448	575	651	895	1050	1380	1630
180										474	605	687	940	1100	1450	1710
190											635	722	995	1160	1510	1790
200											665	758	1030	1210	1580	1870
