DIN 7343 Specifications

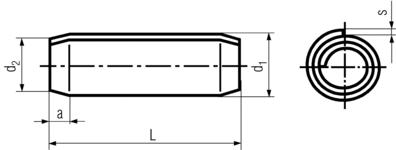

Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

Nom. dia. d1 min. d2 max. a approx. s
1 1.05 0.95 0.3 0.08
1.2 1.25 1.15 0.4 0.1
1.5 1.62 1.4 0.5 0.13
2 2.13 1.9 0.7 0.17
2.5 2.65 2.4 0.7 0.21
3 3.15 2.9 0.9 0.25
3.5 3.67 3.4 1 0.29
4 4.2 3.9 1.1 0.33
5 5.25 4.85 1.3 0.42
6 6.25 5.85 1.5 0.5
8 8.3 7.8 2 0.67
10 10.35 9.75 2.5 0.84
