Din 914 Weights


Fasteners, Best Quality Fasteners

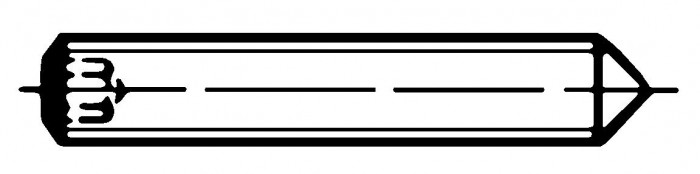

Weight Chart for DIN 914 Socket Set Screws
Diameter M1.4 M1.6 M1.8 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M16 M20 M24
Length
2.5 0.018 0.019 0.030
3 0.022 0.028 0.036 0.044 0.075
4 0.029 0.037 0.048 0.059 0.100 0.14
5 0.036 0.046 0.060 0.074 0.125 0.18 0.255 0.42
6 0.043 0.056 0.072 0.089 0.150 0.22 0.38 0.54 0.74
8 0.119 0.199 0.31 0.53 0.78 1.09 1.88
10 0.148 0.249 0.40 0.68 1.02 1.44 2.51
12 0.49 0.83 1.26 1.79 3.14 4.73
16 0.67 1.13 1.74 2.49 4.40 6.73 9.5
20 0.85 1.43 1.22 3.19 5.66 8.71 12.3 20.9
25 2.82 4.07 7.25 11.2 15.9 27.4 41.4
30 4.95 8.84 13.7 19.5 34.0 51.7 70.3
35 5.83 10.40 16.2 23.1 40.5 62.0 85.3
40 12.00 18.7 26.7 47.1 72.3 100
45 82.6 115
50 92.9 130
55 145
60 160
