DIN 960 Specifications


Fasteners, Best Quality Fasteners

All measurements in millimeters (mm)

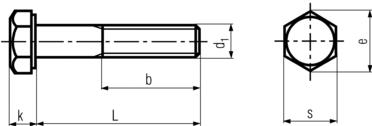

d1 s e k b= to 125 b= to 150 b= to 200
M8 x 1 13 14.38 5.3 22 28
M10 x 1 17 18.9 6.4 26 32
M10 x 1.25 17 18.9 6.4 26 32
M12 x 1.25 19 21.1 7.5 30 36
M12 x 1.5 19 21.1 7.5 30 36
M14 x 1.5 22 24.49 8.8 34   40
M16 x 1.5 24 26.75 10 38   44
M18 x 1.5 27 30.14 11.5 42   48
M20 x 1.5 30 33.53 12.5 46   52
M20 x 2 30 33.53 12.5 46   52
M24 x 2 36 39.98 15 54   60
